110 Salted Egg yolk grader (12,000 egg yolks/hour)
Model: ZYF-DH1
Applications



Description
Product Overview
The 110 Salted Duck Egg Yolk Grader (Model: ZYF-DH1) is a specialized equipment in the field of food processing, dedicated to precisely sorting salted egg yolks by weight. It can significantly enhance production efficiency, ensure consistency in product specifications, and meet the standardized production needs of food processing enterprises.
Product Features
High-precision weight sorting: Equipped with a weighing sensor and intelligent grading algorithm, it has a production capacity of 12,000 pieces per hour and a sorting accuracy of ±0.5g, achieving precise weight-based grading of salted egg yolks and ensuring uniform finished product specifications.
Food-grade safe materials: Tiered track made of 304 stainless steel, food-grade silicone conveyor belt, corrosion-resistant and easy to clean, meeting food processing safety requirements.
Flexible and adjustable grading specifications: Modular design, supporting free setting of 1-6 levels of grading, adapting to different product production standards.
Intelligent operation guarantee: Equipped with early warning for faults, it reduces manual intervention, minimizes downtime losses, and ensures continuous and stable production of the production line.

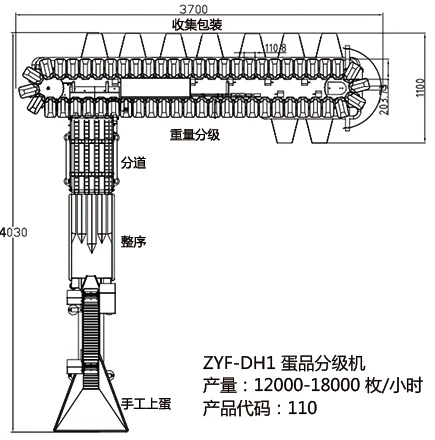

Technical drawing

Process flow:

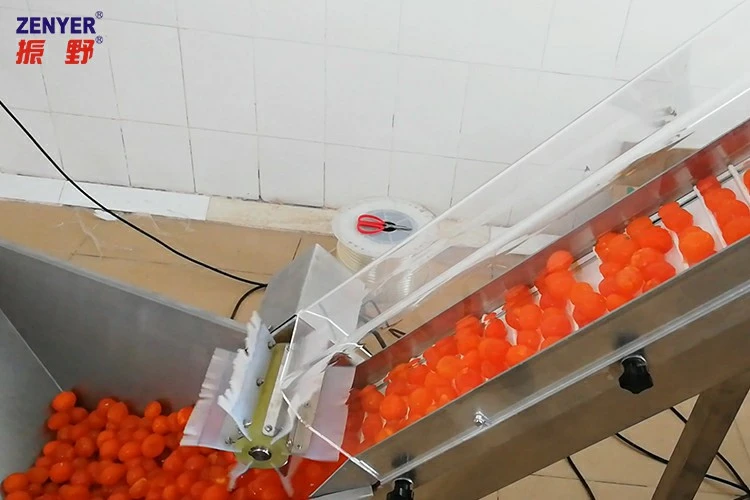

Manual egg loading

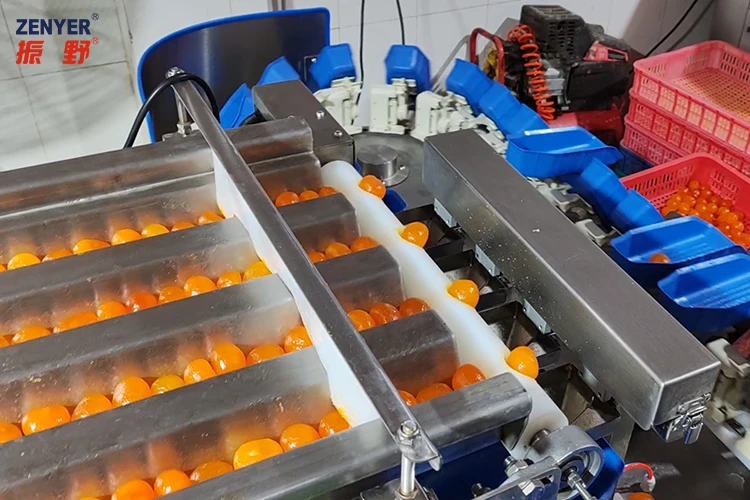

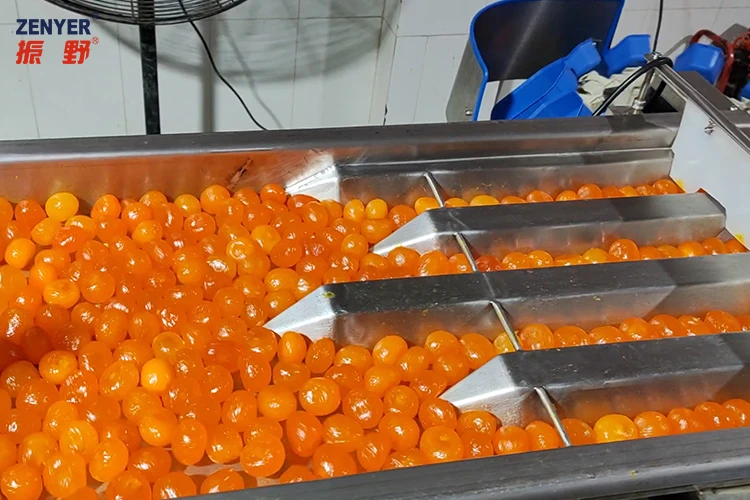

Sorting and channeling

Weighing and counting

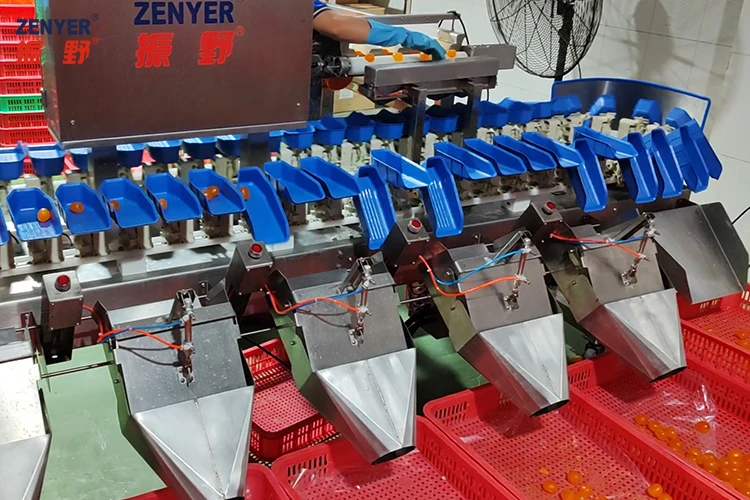

Egg grading and collection
Features
- Capacity: 12,000-18,000 egg yolks/hour
- Grading accuracy ±0.5g, up to 8 levels
- 304 stainless steel, low power 0.6KW
- Precise yolk weight grading
Specifications



Features
- Capacity: 12,000-18,000 egg yolks/hour
- Grading accuracy ±0.5g, up to 8 levels
- 304 stainless steel, low power 0.6KW
- Precise yolk weight grading
