502B Duck Egg separator (30,000 eggs/hour)
Model: ZYD-MS6




Description
Product Overview
The 502B Duck Egg separator (Model: ZYD-MS6) is an efficient device specifically designed for the automated processing of salted duck eggs. It can process 30,000 salted duck eggs per hour, significantly enhancing production efficiency and is suitable for large-scale egg processing enterprises. This equipment offers distinct advantages over manual operations in terms of automation, food safety, and labor protection. The machine operates automatically after eggs are manually poured into the water tank, cracking the salted duck eggs, extracting the salted yolk, discarding the shell, and separately conveying the yolk and egg liquid to user-provided containers. The entire process is simple and more user-friendly, and the mechanical egg cracking also prevents hands from being harmed by high saltiness.
Product Features
1) High production output: The operational output reaches 30,000 units per hour, with one device capable of replacing a large number of manual laborers, enabling continuous and efficient operations.
2) Special process adaptation: Designed specifically for salted duck eggs, it supports automatic egg cracking, yolk extraction, shell throwing, and separate conveyance of yolk and egg liquid. The entire process is automated, reducing human intervention.
3) Material Safety Upgrade: The main structure is made of 316 stainless steel profiles, which exhibit stronger corrosion resistance compared to conventional 304 material. This makes it particularly suitable for salted egg processing in high-salt environments and more compliant with food-grade hygiene standards.
4) Human-machine friendly design: The worker only needs to pour the eggs into the water tank, and the subsequent process is fully automated. The operation is simple and reduces the dependence on the operator's skills.
5) Optimization of labor protection: Mechanical egg-breaking avoids skin irritation or damage caused by long-term manual contact with high-saltiness salted duck eggs, enhancing operational safety.

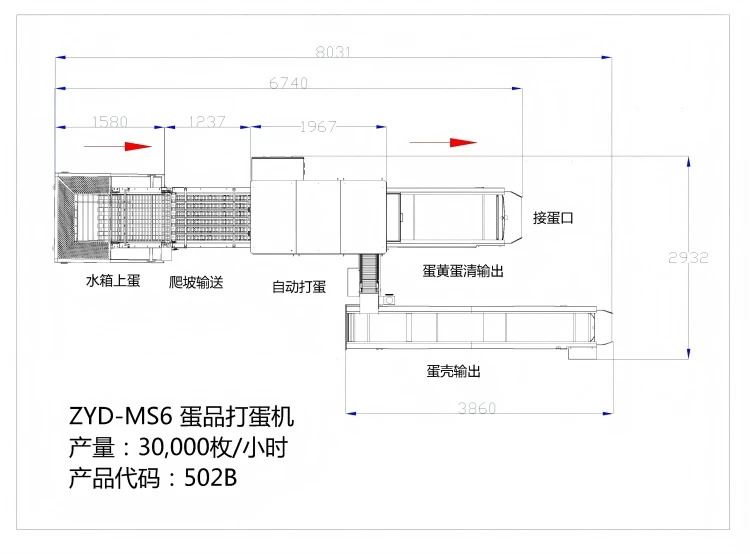

Technical drawing

Process flow

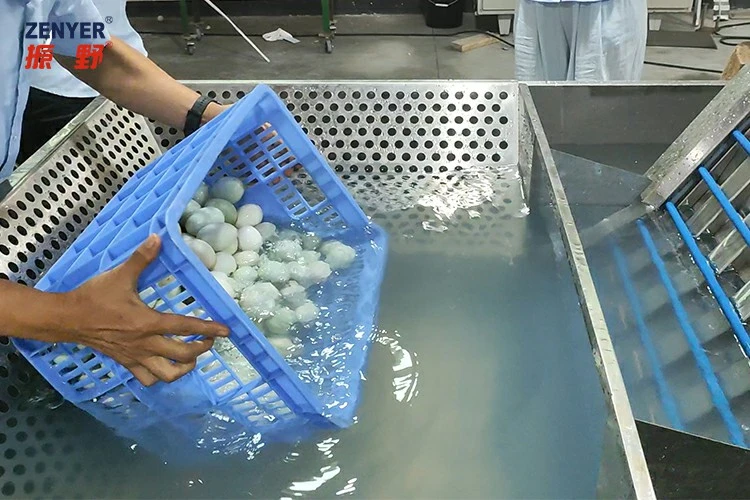

Water bath loading

Slope conveying

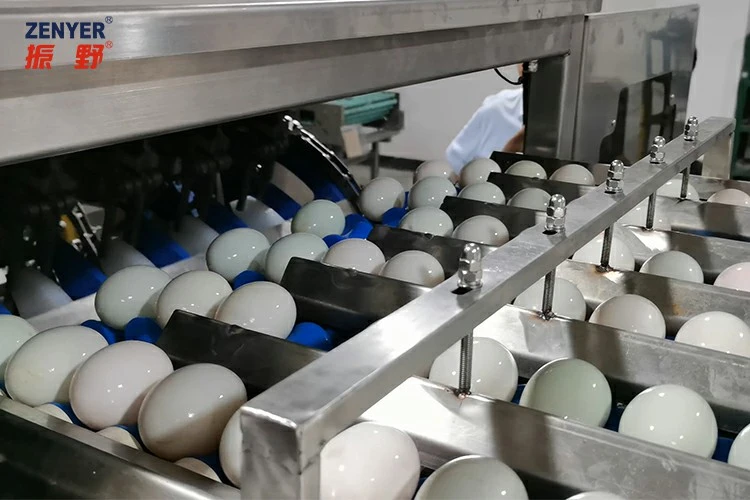

Automatic egg separating

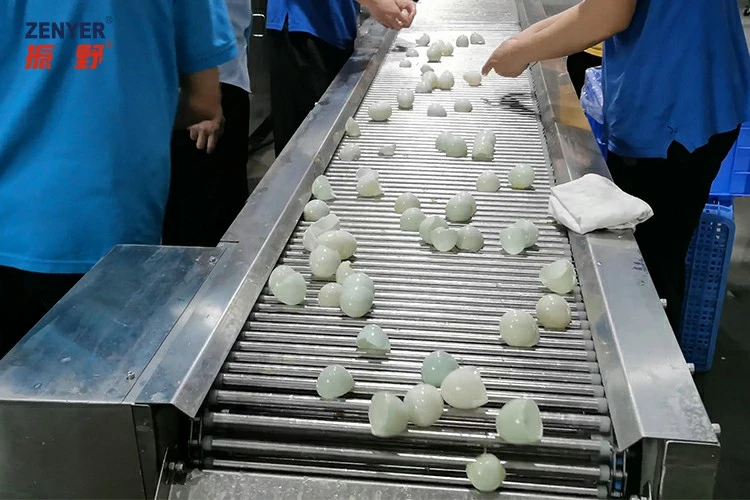

Egg shell collection

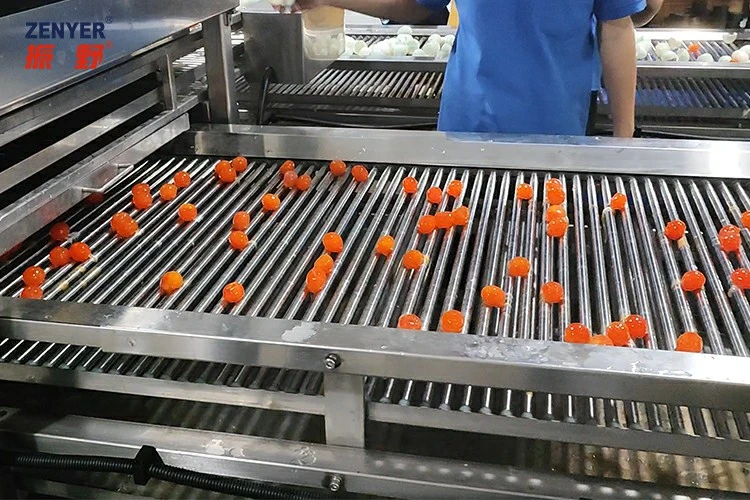

Egg yolk and egg liquid collection

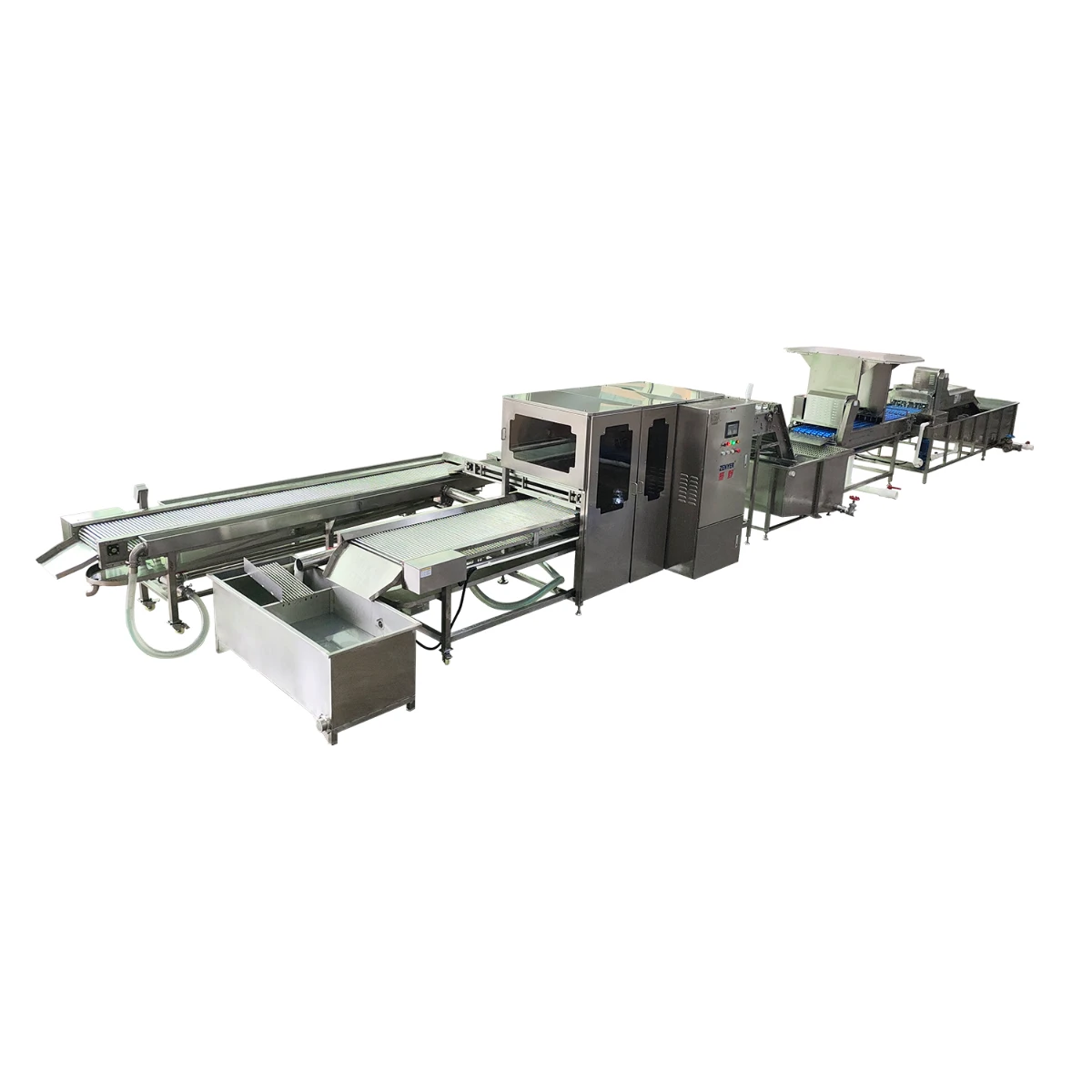

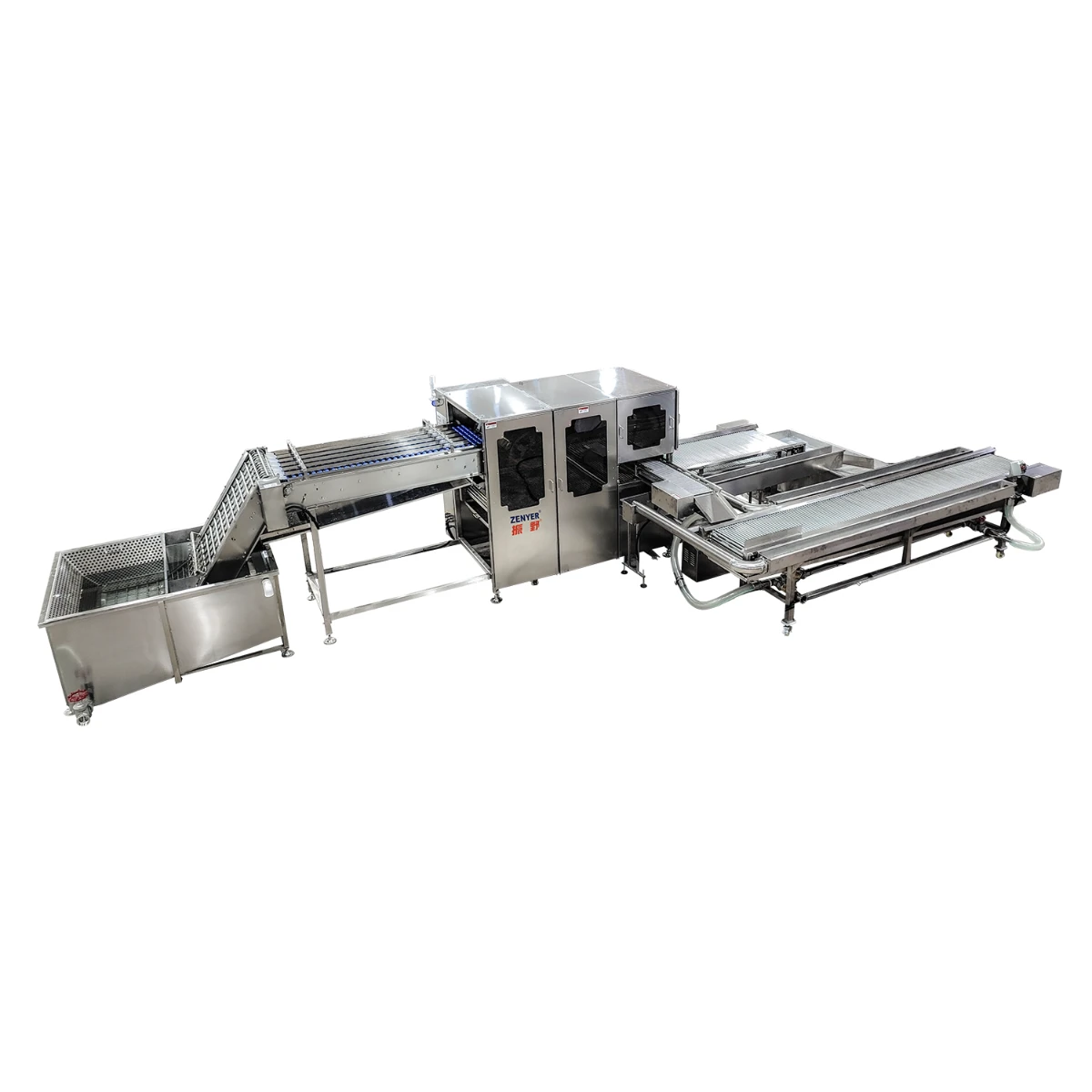

This egg breaker can be used standalone, or paired with the ZENYER washing machine to form a cleaning and egg breaking production line. If you use salted eggs made by mud-pickling, we recommend pairing it with the washing machine for a cleaning-inspection-egg breaking assembly line operation. This not only allows for the early selection of bad eggs that have not been properly pickled, but also ensures better egg breaking results and a higher shelling rate.

Features
- 1) High production capacity: 30,000 duck eggs/hour, replacing a large number of manual laborers, ensuring continuous and efficient production.
- 2) Special for salted eggs: Automatically cracking eggs, extracting egg yolks, and discarding egg shells, with separate conveyance of egg yolks and egg liquid, achieving full automation throughout the entire process.
- 3) Corrosion-resistant food material: The main body is made of 316 stainless steel, which is superior to 304 and suitable for processing high-salted eggs, meeting food hygiene requirements.
- 4) Safer operation: Mechanical egg-breaking avoids skin damage caused by manual contact with high-salt materials.
Specifications
